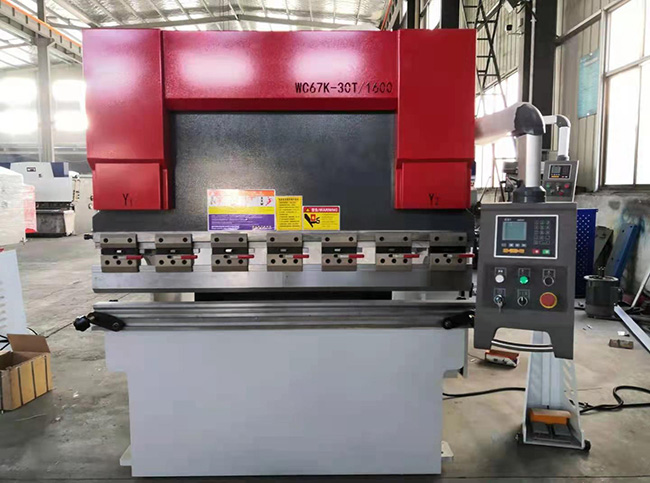

WC67K CNC hydraulic press brake

  • WC67K CNC hydraulic press brake
  • WC67K CNC hydraulic press brake
WC67K CNC hydraulic press brakeWC67K CNC hydraulic press brake

WC67K CNC hydraulic press brake

  • Model Number: WC67K
  • Machine Type: Press Brake
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Control System: CNC
  • Product description: WC67K CNC hydraulic press brake
  • INQUIRY

Product Application

1.Steel-welded construction,vibration to eliminate stress,with high strength and good rigidity.
2.Hydraulic top-drive,steadiness and reliability.Mechanical stop ,steel torsion bar to maintain synchronization,high precision.
3.Motorized-adjusting device of backgauge and ram stroke,fine adjusting by handwheel,numerical display.
4.Deflection compensation unit installed on the top die.Manual crowned bottom die holder is adopted for the machine above 250ton slength 4000mm.
The whole structure of the hydraulic press brake:
- Totally European design,streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily
-Welded structure: the stress of the welded parts can be eliminated by vibration; so this forging press gives high accuracy.
- High accuracy,high efficiency,simple and convenient operation,good performance, favorable price and best service.
1. Hydraulic system:
- Adopt integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.
- Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board.
-All seals in cylinder is imported,the most famous brand,good quality and high performance
- Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly
2. Electrical system and the safety interlock:
-Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.
-Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
- The machine by the European Union CE certification and ISO quality system certification
3. Synchro control system:
- Slide syncho system: adopt steel torsion bar synchro system, simple in structure and high in accuracy
- 2 ends of slide has 2 synchro fork which make,The system uses upper die compensation to improve the brake precision.
3-The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.
4. Ram structure:
-Upper stroke design for bending,low noise,stable operating situation.
- Can move the ram up slowly,which allows the operator to control work piece conveniently.
-Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.
- Separate sectional clamping bars are supplied as standard equipment in order to securely fasten short dies.




Specification


Nominal
Pressure

Length of
working table

Throat dephts

Ram Stroke

Number of
Stroke

Motor power
KN
mm
mm
mm
m/min-1
KW
WC67Y/K-40/2200
400
2200
200
100
11
4
WC67Y/K-40/2500
400
2500
200
100
11
4
WC67Y/K-50/2500
500
2500
200
100
11
5.5
WC67Y/K-63/2500
630
2500
250
100
10
5.5
WC67Y/K-63/3200
630
3200
250
100
10
5.5
WC67Y/K-80/2500
800
2500
320
150
8
7.5
WC67Y/K-80/3200
800
3200
320
150
8
7.5
WC67Y/K-100/2500
1000
2500
320
150
8
7.5
WC67Y/K-100/3200
1000
3200
320
150
8
7.5
WC67Y/K-100/4000
1000
4000
400
150
8
7.5
WC67Y/K-125/2500
1250
2500
320
150
8
7.5
WC67Y/K-125/3200
1250
3200
320
150
8
7.5
WC67Y/K-125/4000
1250
4000
400
150
8
7.5
WC67Y/K-160/3200
1600
3200
400
180
8
11
WC67Y/K-160/4000
1600
4000
400
180
8
11
WC67Y/K-160/5000
1600
5000
400
180
7
11
WC67Y/K-160/6000
1600
6000
400
200
7
15
WC67Y/K-200/3200
2000
3200
400
200
7
15
WC67Y/K-200/4000
2000
4000
400
200
7
15
WC67Y/K-200/6000
2000
6000
400
200
7
15
WC67Y/K-250/3200
2500
3200
400
200
7
18.5
WC67Y/K-250/4000
2500
4000
400
200
7
18.5
WC67Y/K-250/6000
2500
6000
400
250
7
18.5
WC67Y/K-300/3200
3000
3200
400
250
7
22
WC67Y/K-300/4000
3000
4000
400
250
7
22
WC67Y/K-300/6000
3000
6000
400
250
7
30
WC67Y/K-300/7000
3000
7000
400
250
7
30
WC67Y/K-400/6000
4000
6000
400
250
7
30
WC67Y/K-500/6000
5000
6000
400
300
7
37
WC67Y/K-600/6000
6000
6000
420
300
7
37
