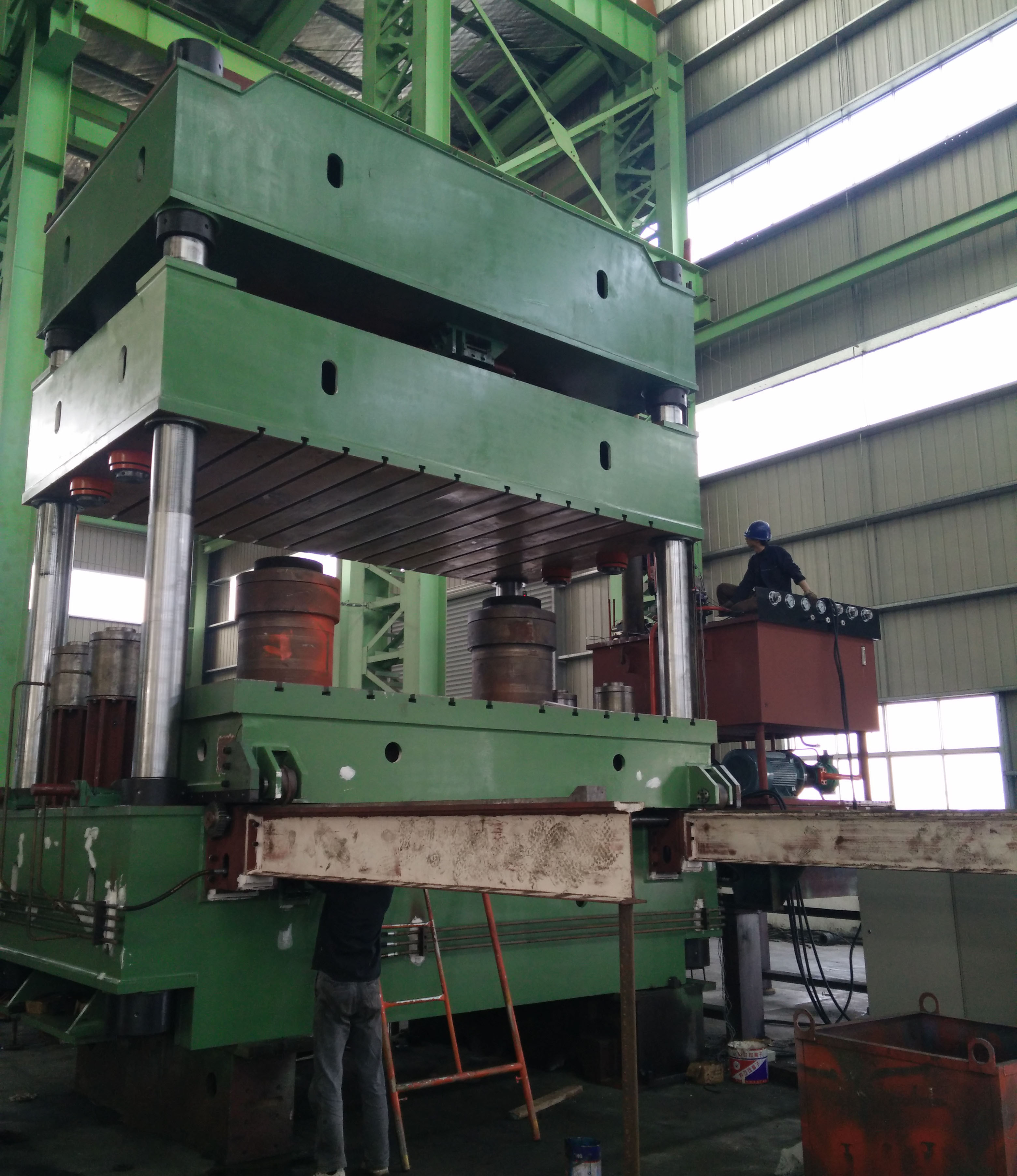

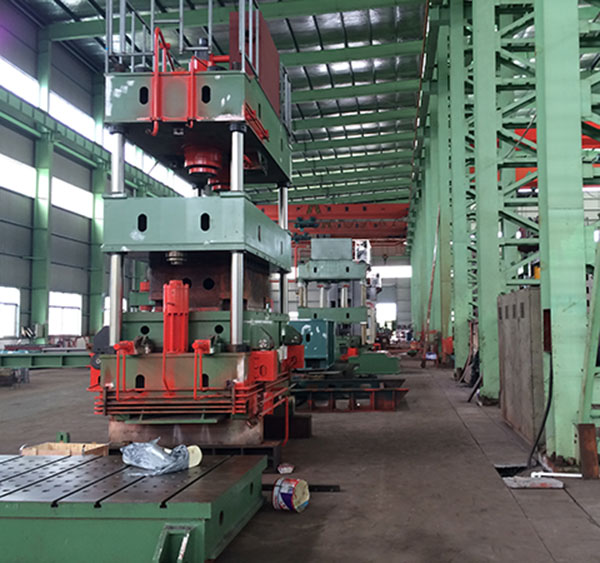

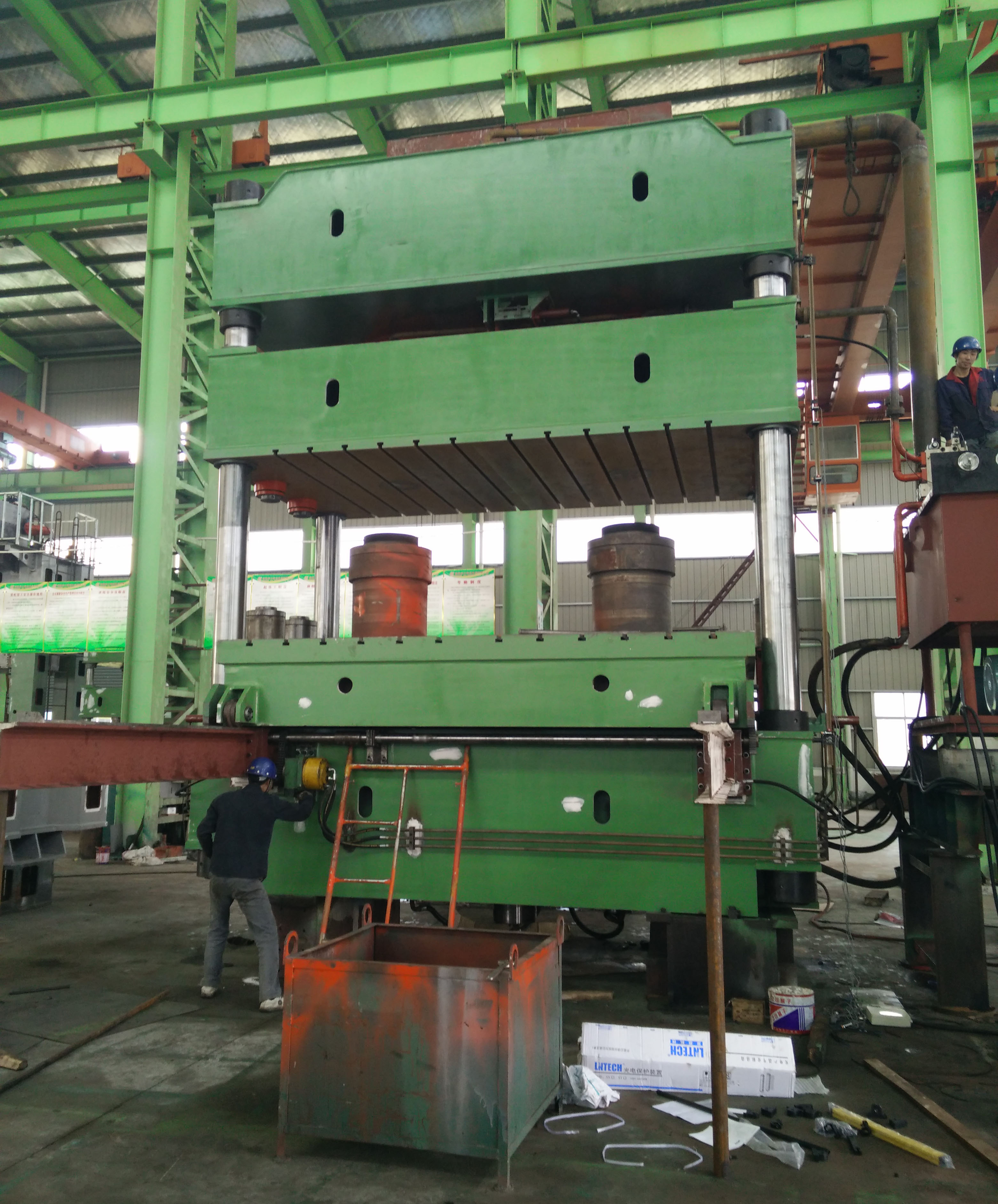

Four Column Hydraulic Press Down Stroke Machine

  • Model Number: Y27/28/32/41/78 series hydraulic press
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: hydraulic machine
  • Name: hydraulic press
  • Product description: Four Column Hydraulic Press Down Stroke Machine
  • INQUIRY
Suitable for all deep drawing process, especially in the following fields:
1, Pressure Vessel, Drawing and forming for barrel and head cap.
2, deep drawing for Stainless steel sink.

3, drawing for long work piece, like bath.

4, Drawing and Forming for Big automobile panel and parts.


Technical paramet

Item             type

Unit

Y32-40

Y32-63

Y32-100

Y32-125

Y32-200

Y32-315

Y32-400

Y32-500

Y32-630

Y32-800

Y32-1000

Y32-1250

Nominal Pressure

kN

400

630

1000

1250

2000

3150

4000

5000

6300

8000

10000

12500

Ejecting Force

kN

100

160

630

630

800

800

800

1000

1000

1250

2000

2000

Knock-out Force

kN

150

125

160

180

360

450

345

570

850

720

1600

1200

The Max. Pressure of Working Fluid

MPa

25

25

25

25

25

25

25

25

25

25

25

25

The Max. Stroke of Slider

mm

320

500

630

630

710

800

800

900

1000

1000

1000

1000

The Max. Stroke of Ejector

mm

150

160

200

200

250

300

300

300

300

350

450

450

The Max. Opening Height

mm

520

800

900

900

1120

1250

1250

1500

1600

1600

1600

1800

Speed of Slider

Descend

mm/s

55

115

250

220

160

120

180

150

120

150

150

250

working

mm/s

10-35

10-22

12-40

9-31

7-24

8-20

10-24

10-24

8-18

8-15

5-12

8-15

Return

mm/s

105

105

200

180

120

120

250

180

125

145

75

140

             Speed of Ejector

Ejecting

mm/s

170

90

120

60

60

75

120

65

65

50

60

45

Return

mm/s

450

220

125
