QC11Y/K CNC or NC hydraulic shearing machine

  • QC11Y-8*4000 hydraulic guillotine shearing machine

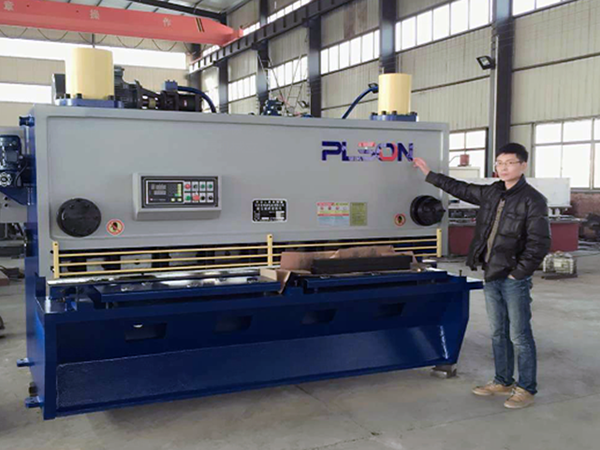

QC11Y-8*4000 hydraulic guillotine shearing machine

QC11Y-8*4000 hydraulic guillotine shearing machine

  • Model Number: QC11Y
  • Dimension(L*W*H): 4600*2220*2100
  • After-sales Service Provided: Engineers available to service machinery overseas
  • shearing angler: 0.5-2
  • Product description: QC11Y-8*4000 hydraulic guillotine shearing machine
  • INQUIRY
Performance characteristics:
All steel welded structure , vibrating treatment of ageing for removal of internal stress , with good rigidity and stability .
Integrated hydraulic transmission system , with good reliability .
Triple support rolling guide raikl to eliminate gaps of support and enhnce shearing quality .
Mechanical rear stopper with manual fine tuninfg , and digital indication .
Clearance in between shearing blades adjusted by hand wheel to be quyick , accurate and convenient .
Rectangular blades with four cutting edges to prolon working life , adjustable shearing angle to reduce deformation of the sheet .
Upper blade holder has inward tiling structure to facilitate material feed in and also enhabnce accuracy of the work piece .
Function of shearing in sections , function of aligning with light .
Optional :rear material holding device ( or for other choice )

Main technical data:


Specification

Shearing
Thickness

Shearing
Width

Strokes


Backgauge
Rang


Shearing
Angler

Throat
Height

Main
Power
mm
mm

mm-1

mm
(°)
mm
KW
QC11Y-6*2500
6
2500
10-35
20-600
1°30'
800
7.5
QC11Y-6*3200
6
3200
8-35
20-600
1°30'
800
7.5
QC11Y-6*4000
6
4000
7-35
20-600
1°30'
800
7.5
QC11Y-6*5000
6
5000
6-25
20-800
1°30'
900
11
QC11Y-6*6000
6
6000
5-25
20-800
1°30'
1000
11
QC11Y-8*2500
8
2500
10-35
20-600
1°30'
800
7.5
QC11Y-8*3200
8
3200
8-35
20-600
1°30'
850
7.5
QC11Y-8*4000
8
4000
7-35
20-600
1°30'
900
7.5
QC11Y-8*5000
8
5000
6-25
20-800
0.5-2°
1000
15
QC11Y-8*6000
8
6000
5-25
20-800
0.5-2°
1050
15
QC11Y-12*2500
12
2500
10-35
20-800
0.5-2.5°
840
15
QC11Y-12*3200
12
3200
6-20
20-800
0.5-2.5°
900
15
QC11Y-12*4000
12
4000
6-20
20-800
0.5-2.5°
940
15
QC11Y-12*5000
12
5000
5-15
20-800
0.5-2.5°
1000
15
QC11Y-12*6000
12
6000
6-15
20-800
0.5-2.5°
1060
30
QC11Y-16*2500
16
2500
8-30
20-800
2°30'
840
18.5
QC11Y-16*3200
16
3200
7-30
20-800
2°30'
900
22
QC11Y-16*4000
16
4000
6-30
20-800
2°30'
940
30
QC11Y-16*5000
16
5000
6-15
20-800
0.5-2.5°
1000
30
QC11Y-16*6000
16
6000
5-15
20-800
0.5-2.5°
1100
37
QC11Y-20*2500
20
2500
9-30
20-1000
0.5-3°
900
30
QC11Y-20*3200
20
3200
7-30
20-1000
0.5-3°
950
30
QC11Y-20*4000
20
4000
6-30
20-1000
0.5-3°
1100
30
QC11Y-20*5000
20
5000
5-30
20-1000
3°
1100
37
QC11Y-20*6000
20
6000
5-15
20-1000
3°
1200
45
QC11Y-25*2500
25
2500
5-25
20-1000
0.5-3.5°
900
37
QC11Y-25*3200
25
3200
4-25
20-1000
0.5-3.5°
950
37
QC11Y-25*4000
25
4000
3-20
20-1000
0.5-3.5°
1100
37
QC11Y-32*2500
32
2500
4-12
20-1000
0.5-3.5°
1000
55
QC11Y-32*3200
32
3200
4-12
20-1000
0.5-3.5°
1100
55
QC11Y-40*2500
40
2500
3-10
20-1000
0.5-4°
1200
60
QC11Y-40*3200
40
3200
3-10
20-1000
0.5-4°
1200
60
